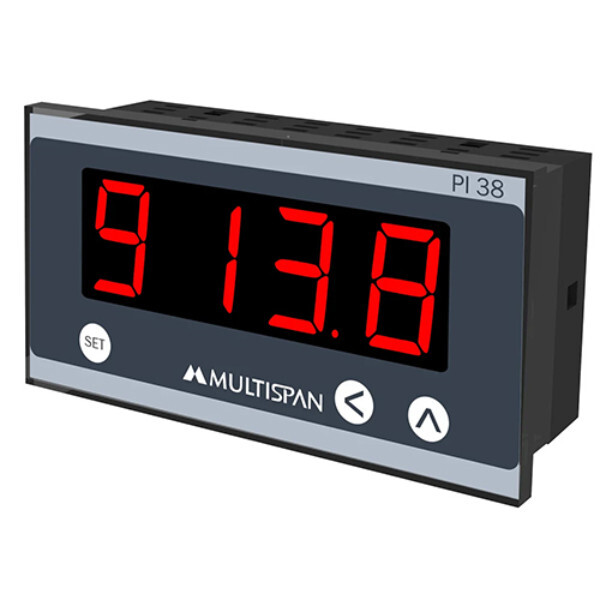

MULTISPAN PROCESS CONTROLLER PIC-38

MULTISPAN PROCESS CONTROLLER PIC-38 Specification

Pressure
Supports pressure input via suitable transducer

Connection
Screw Terminal

Accuracy
0.5% of F.S.

Function
Universal Process Controller for temperature, pressure, humidity, and other process variables

Size
96 x 96 x 52 mm

MULTISPAN PROCESS CONTROLLER PIC-38 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Day

Delivery Time
10 Days

Main Export Market(s)
Africa, Asia, Middle East

Main Domestic Market
All India

About MULTISPAN PROCESS CONTROLLER PIC-38

Multispan PIC-38 Process Controller

The Multispan PIC-38 is a versatile and compact process controller designed for precise monitoring and control of temperature, pressure, flow, and other process variables in industrial applications. With its user-friendly interface and reliable performance, the PIC-38 ensures optimal process stability and efficiency.

Key Features:

Display: Bright 4-digit, 7-segment LED display for clear visibility.
Input Types: Universal input (RTD, Thermocouple, mA, V) for flexible application.
Control Action: ON/OFF, PID, Auto-tuning for accurate and responsive control.
Relay Outputs: Configurable relay outputs for control and alarms.
Power Supply: Operates on standard 85270V AC/DC or optional low voltage.
Housing: Compact DIN rail or panel mount enclosure with robust build.
Setpoint Memory: Non-volatile memory retains settings during power loss.
Applications: Ideal for furnaces, ovens, packaging machines, HVAC systems, and other automation setups.

Optional Features:

RS-485 Modbus communication
SSR/analog output

Versatile Universal Controller

The PIC-38 is designed to handle various industrial processes, supporting temperature, pressure, and humidity control with ease. Its compatibility with multiple sensor inputs and flexible control outputs make it suitable for wide-ranging automation applications.

User-Friendly Interface & Flexible Operation

A clear 4-digit LED display, two configurable set points, and simple panel mounting facilitate intuitive setup and daily operation. The controllers screw terminal connections ensure secure wiring for consistent performance.

Reliable and Accurate Performance

Built to withstand challenging environments, the PIC-38 maintains high accuracy (0.5% of F.S.) in ambient conditions from 0 to 50C and up to 90% non-condensing humidity. Its programmable alarm function enhances safety and process efficiency.

FAQs of MULTISPAN PROCESS CONTROLLER PIC-38:

Q: How do I connect different types of sensors to the PIC-38 process controller?

A: The PIC-38 supports RTD (Pt100), J, K, T thermocouples, 4-20mA current, and 0-10V voltage inputs. Simply select the compatible terminals for your sensor type and secure your connections via the screw terminal connectors as specified in the wiring diagram.

Q: What applications can the PIC-38 process controller be used for?

A: This controller is ideal for measuring and controlling temperature, pressure, and humidity in various industrial processes. It is commonly used in manufacturing, HVAC systems, laboratory automation, and any application requiring precise process control.

Q: When should I configure the set points and alarms?

A: Set points and alarms should be configured during the initial setup or when your process parameters change. The process controller allows two configurable set points and a programmable alarm for flexible safety and operational responses.

Q: Where should the PIC-38 be installed?

A: The PIC-38 is designed for panel mounting and should be installed in a standard control panel. Ensure placement within environments ranging from 0 to 50C ambient temperature and less than 90% RH (non-condensing) for optimal performance.

Q: What are the benefits of using a universal process controller like the PIC-38?

A: Using the PIC-38 streamlines your process control by supporting a broad range of sensor types and control outputs. Its accuracy, flexibility, and programmable alarms help maintain consistent product quality and process safety.

Q: How does the alarm function work on this controller?

A: The programmable alarm function allows users to set conditions under which the alarm will activate, such as exceeding temperature or pressure thresholds. This ensures timely notifications for corrective actions, safeguarding your equipment and process.
