schneider power contactor

schneider power contactor Specification

Overheating Protection
YES

Humidity %
Up to 95% RH Non-condensing

Power Factor
0.85

Feature
Low power loss, Robust construction, Long life contacts

Shape
Rectangular

Connector Type
Screw Connection

Surface Finish
Matte

Mounting Type
DIN Rail / Panel Mounting

IP Rating
IP20

Operating Temperature
-5C to +55C

Insulation Material
Thermoplastic

Efficiency
High

Product Type
Power Contactor

Application
Industrial Power Control, Motor Starters, HVAC, Lighting Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
2.2 W (holding)

Output Type
Normally Open (NO)/Normally Closed (NC)

Color
Black and White

Dimension (L*W*H)
80 mm x 45 mm x 86 mm

Weight
320 g

Input Voltage
220-240 V AC

Size
Standard

Phase
Three Phase

No Of Poles
3

Connection Type
Screw Terminal

Material
High-grade Plastic and Copper

Mechanical Life
10 million operations

Vibration Resistance
5g (10-150 Hz) per IEC 60068-2-6

Shock Resistance
15g (11 ms) per IEC 60068-2-27

Coil Voltage
220-240 V AC

Stored Energy Operator
No

Auxiliary Contacts
1 NO + 1 NC

Series
LC1D

Short Circuit Protection
Yes (with external device)

Electrical Life
1 million operations

About schneider power contactor

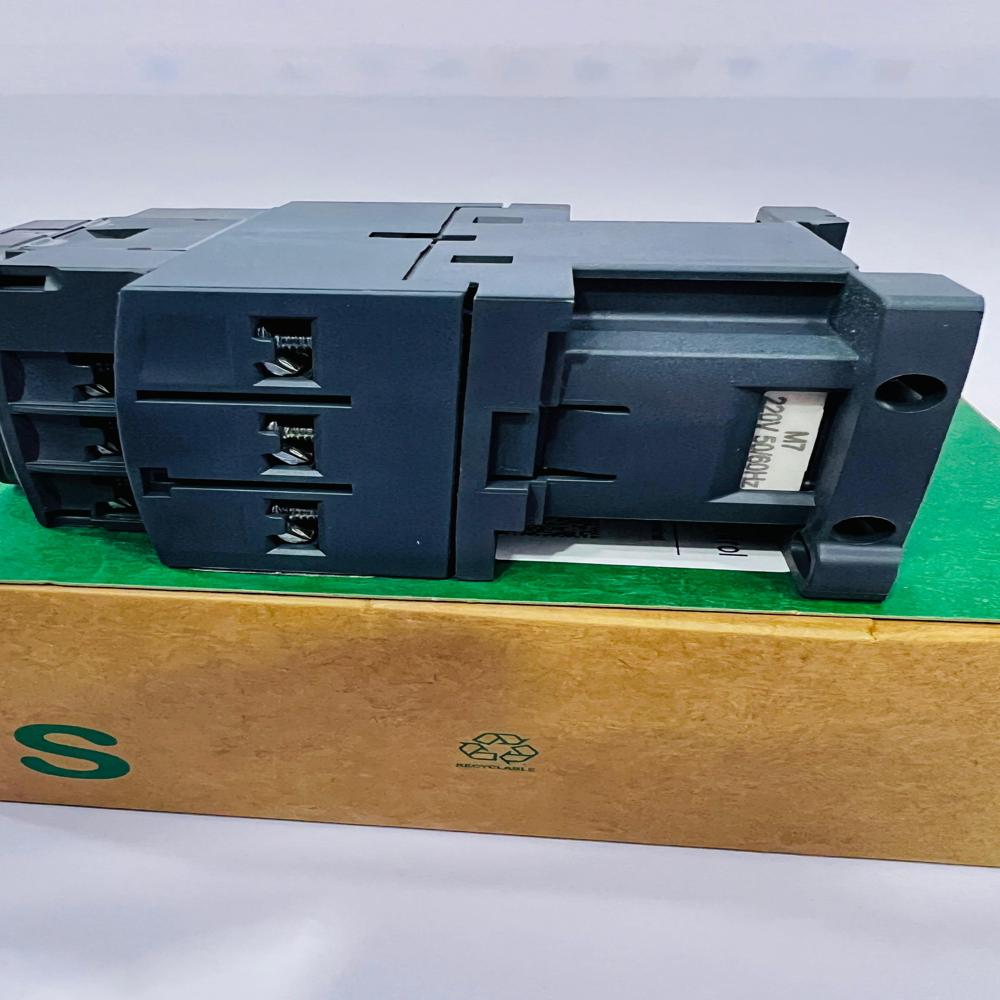

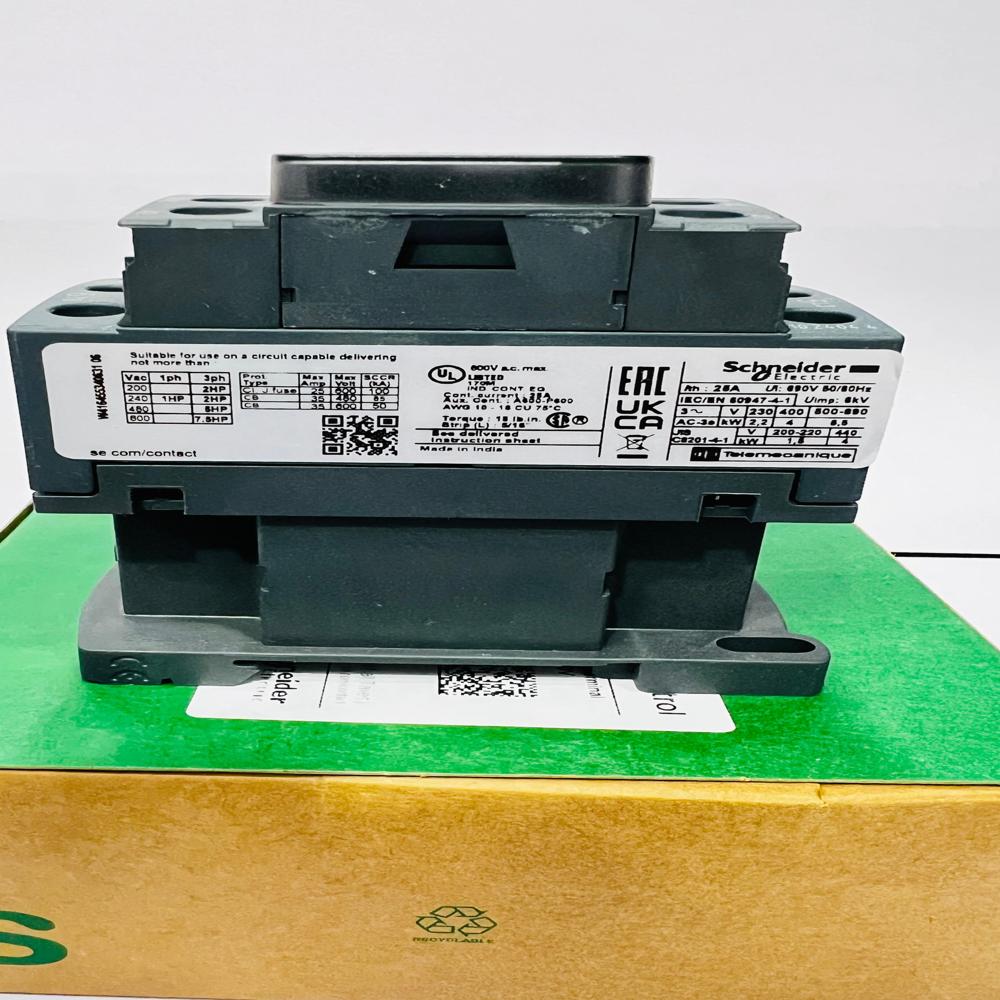

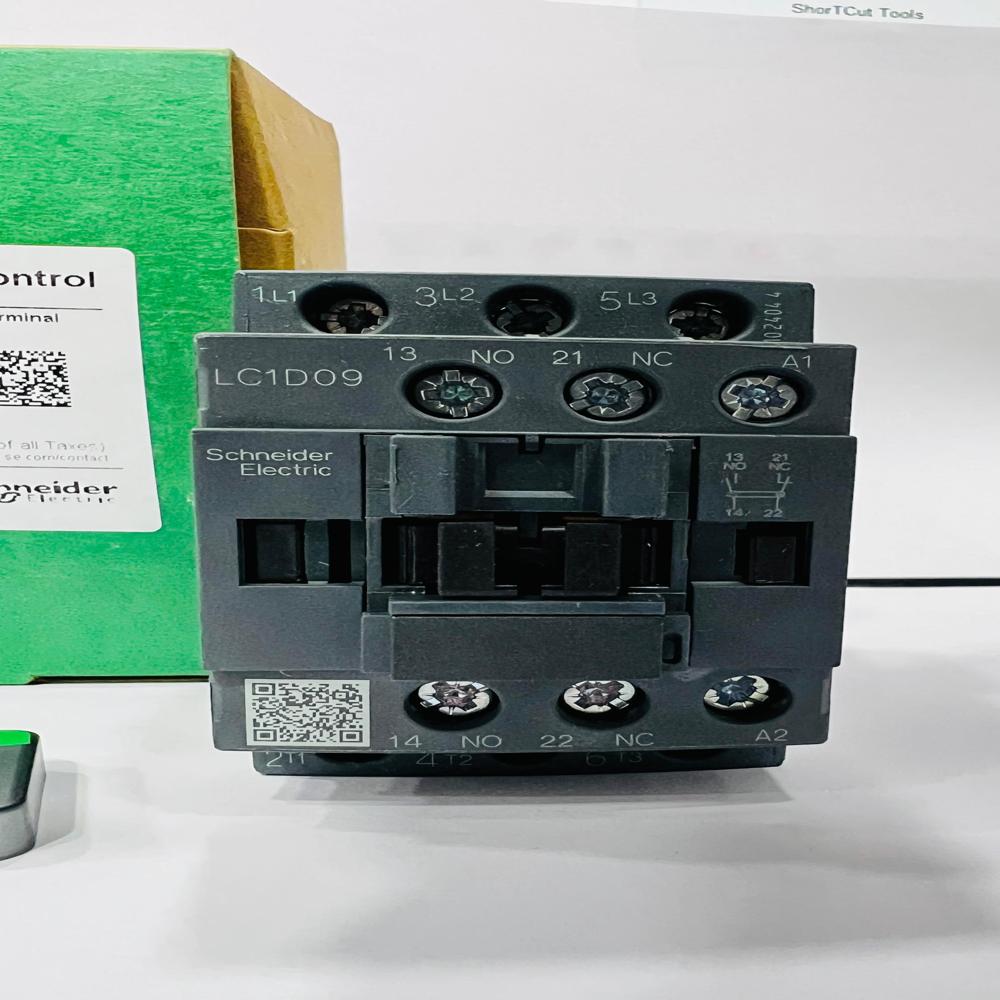

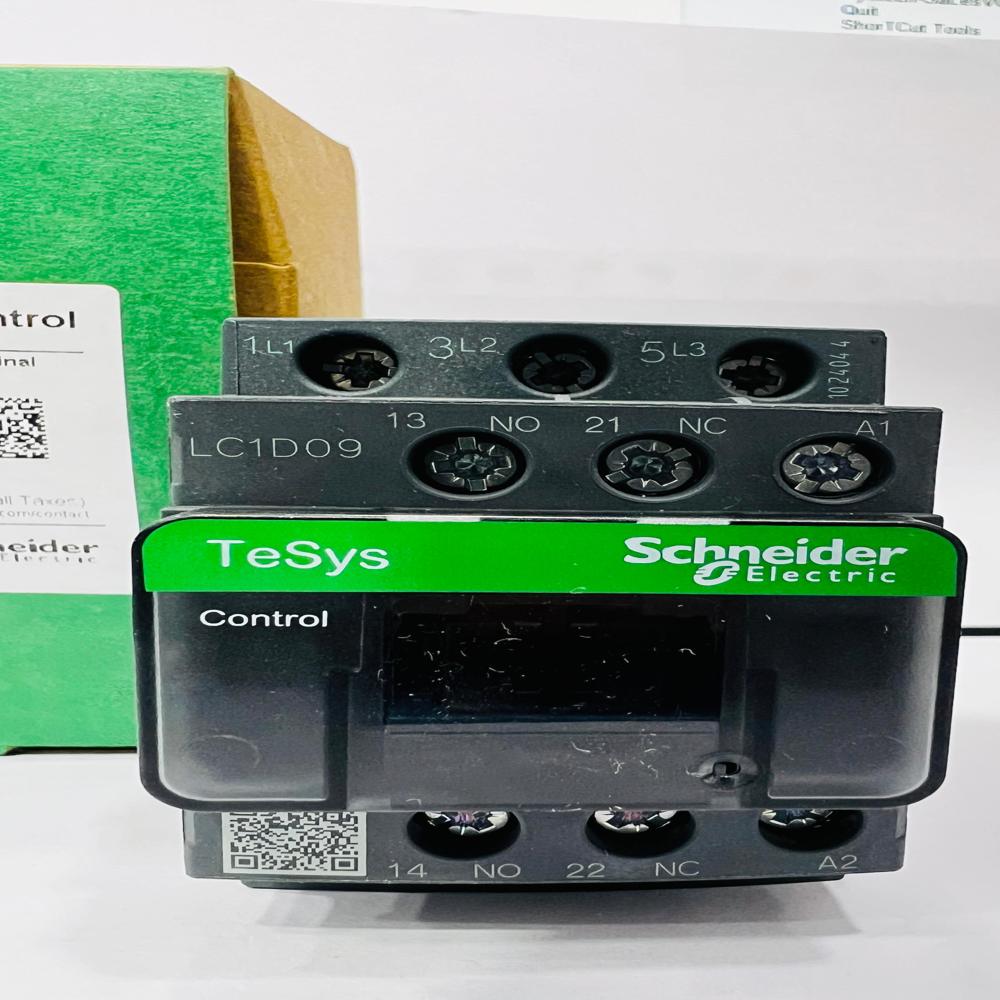

The LC1D09 is a compact 3-pole magnetic power contactor from Schneider Electrics TeSys D series, designed for switching and controlling electric motors and power circuits. It comes with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact for control circuit interlocking and signaling functions. It is widely used in motor starters, automation panels, and industrial control systems.

Key Technical Specifications

Rated Operational Current (AC-3): 9 A
Rated Operational Voltage: up to 690 V AC
Motor Power: up to 4 kW at 400 V
Main Contacts: 3 Pole (3NO)
Auxiliary Contacts: 1NO + 1NC (built-in)
Coil Voltage Options: 24V / 110V / 220V / 415V AC or DC
Mounting: DIN rail or screw mounting
Connection Type: Screw clamp terminals
Operating Frequency: Up to 3600 switching cycles/hour
Operating Temperature: up to 60C
Standards: IEC 60947, UL, CSA compliant

Applications

Motor starters (DOL / Star-Delta)
Electrical control panels
Industrial automation systems
Pump and compressor control
HVAC equipment

Features

Compact 45 mm width design
High electrical and mechanical life
Easy integration with LRD series overload relays
Reliable performance for inductive and motor loads

Reliable Industrial Control Solution

The Schneider LC1D Power Contactor stands as a benchmark for durability and superior performance, boasting a long mechanical and electrical life. Its rugged construction, IP20-protected housing, and robust screw terminal connections make it suitable for critical applications in industrial automation. Experience consistent, safe operations with minimal maintenance needs, optimized for motor control, HVAC, and lighting management.

Flexible Mounting and Easy Integration

Designed to simplify installation, this contactor can be easily mounted on DIN rails or panels. Its compact dimensions (80 x 45 x 86 mm) and standard size ensure compatibility with existing enclosures and switchboards. The integration of high-grade plastic, copper, and thermoplastic insulation supports both durability and high efficiency, providing reliable performance even in high humidity (up to 95% RH) and varying temperatures.

FAQ's of schneider power contactor:

Q: How is the Schneider LC1D power contactor installed?

A: This contactor supports versatile mounting options, allowing installation on both DIN rails and panels. Screw terminal connections simplify the wiring process, ensuring a secure and efficient setup for industrial applications.

Q: What applications are suitable for the LC1D power contactor?

A: The LC1D series is ideal for motor starters, HVAC systems, lighting circuits, and industrial power control. Its robust construction and high endurance make it suitable for demanding installations where reliability and long operational life are crucial.

Q: What protective features does this contactor offer?

A: The contactor includes short-circuit protection via external devices and overheating protection. Additionally, its IP20-rated housing safeguards internal components from dust and accidental contact, enhancing operational safety.

Q: When should the auxiliary contacts (1 NO + 1 NC) be used?

A: Auxiliary contacts are used to signal or control related circuits, such as indicator lamps or interlocking systems, providing versatile integration for automation and monitoring purposes.

Q: Where can I use the LC1D contactor in terms of environmental conditions?

A: With an operating temperature range of -5C to +55C and tolerance for up to 95% non-condensing humidity, this contactor performs reliably in diverse industrial and commercial settings across India.

Q: What are the benefits of using the Schneider LC1D compared to standard contactors?

A: Key benefits include low power loss (2.2 W holding), long life contacts, robust construction, and high efficiency. Its compliance with IEC standards for shock and vibration, coupled with advanced safety features, ensures dependable performance.
